10 Minute Concrete Mender Basics

10 Minute Concrete Mender Basics

At Express Polymers, we see lots of two-component polymer concrete repair products that claim to be just like Concrete Mender. One even calls it self, “Quick Mender.”  They are all basically polyurea based products that are too thick to effectively penetrate concrete surfaces and are so reactive, they become too sticky and gooey to trowel in just a minute or two after mixing.  When you dig a little deeper, you will see a very distinct difference in genuine 10 Minute Concrete Mender™.

  • What is Concrete Mender? Proprietary Polyurethane Blend
  • Formulation: Classified
  • Manufacturing: South Saint Paul, Minnesota, USA
  • Origin: NATO program for rapid bomb damage repair on runways.
  • Function: To penetrate deep into concrete cracks, joints, and spalls creating a structural repair in 10 minutes.
  • Military Use: Classified
  • Civilian Use: Repair cracks, joints and spalls in commercial, industrial and civil applications.
  • Service Life: Indefinite
  • Cure Time: 10 Minutes at 70°F (21°C)
  • Distribution: Worldwide Distributor Network

Surface Tension:

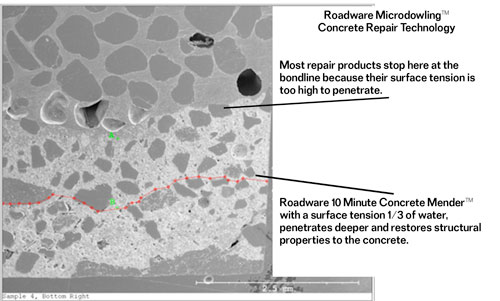

Surface Tension is a measurement of the ability of a liquid to overcome its own internal friction and penetrate into a material like concrete. 10 Minute Concrete Mender™ has a surface tension One third of water. It will penetrate concrete cracks and fissures quicker and deeper than water. This low surface tension lets Concrete Mender™ penetrate normal bond lines and allows structural bonding with the aggregate in the concrete. See the electron microscope slide below.

Microdoweling Concrete Repair Technology

Low surface tension has another little hidden benefit.  It allows 10 Minute Concrete Mender™ to be combined with more than two parts sand and still be workable and trowel-able.  Try that with a polyurea and you will have a gooey mess on your hands.

Microdoweling™ Technology:

Slab to slab micro-doweling action, provided by 10 Minute Concrete Mender, links concrete slabs together, locks them in place and allows for full-traffic, dynamic-load transfer, in 10 minutes. This micro-doweling action is more compatible with concrete and less re-active in harsh environments than even Poly-coated re-bar. Millions of micro-dowels penetrate, then bridge and bond, side by side, broken and jointed slabs. Hairline cracks, trench wide cracks, irregular cracks, cured control joints and variable depth spalls are candidates for this amazing technology.
In 10 minutes, at 70°F (21°C) , this micro-doweled bond has the same compressive and shear strength as poured and fully cured concrete. This makes bond-line failures a thing of the past. Parallel re-cracking, often experienced when epoxies cure out, are eliminated with micro-doweling technology.

Structural Polyurethane

10 Minute Concrete Mender™ is a polyurethane based material that restores structural integrity and aggregate interlock to distressed concrete by using low surface tension and low viscosity to penetrate concrete surfaces and cross -linking polymer chains to bond directly to the concrete-aggregate matrix.  This bonding action utilizes capillary forces to self-inject polymer chains into the surrounding concrete. This material should have a modulus of elasticity less then the surrounding concrete and should not become brittle over time. This material may be combined with manufactured sand to form a PCC compatible polymer concrete that can structurally repair concrete cracks  and spalls.

Advantages– Due to the very low surface tension of the material and low viscosity, complete saturation bonding of cracks can be easily achieved. Minimal prep to remove lose debris is all that is normally required.  This can be considered a structural repair if the material is allowed to gravity flow to the full depth of the crack. Manufactured sand or quartz may be introduced into the repair as necessary to prevent under slab ponding and martial waste. For repair greater than 0.125 inches, specified sand may be added at a ratio of two parts sand to one part mixed polyurethane as the crack is filled to extend the material and add strength. The sand also brings the thermal coefficient of expansion of the repair material closer in-line with surrounding concrete. Polyurethanes of this nature may be applied in a wide range to substraight temperatures making them useful in frozen and cold storage warehouse applications or cold weather application below -20F (-23C). Repairs are typically ready to accept traffic in approximately 10 minutes at 72F (22C).

Toughness:

10 Minute Concrete Mender™ mixed with sand gets about as hard as concrete, yet it’s modulus of elasticity is slightly less than concrete so it will move with the slab, not work against it.

Concrete mender
Common uses for 10 Minute Concrete Mender™

spalled control joints
Spalled control joints and cracks.

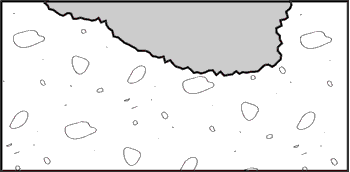

Spalls and holes
Spalls and holes.
Delamination
Delamination Repair
Uneven slabs
Uneven slabs and thresholds.
Crack Injection using gravity:
Typical crack injection repair techniques involve epoxy, ports, pumps, and pressure to force thick epoxies into a crack.  10 Minute Concrete Mender™ with its low surface tension can do same job in less time, less mess, and better performance.
polishable

Polishable:

Polishing your floor to a mirror like finish? Repairs made with Roadware 10 Minute Concrete Mender™ will not smear into the surrounding surface or gum-up diamond polishing pads.  You can even add natural sand to match the grain and color of the surrounding concrete.

Concrete blending
The repair pictured above shows  Concrete Mender™ Off-white blended with plain concrete sand and a small amount of portland cement. This water-thin polyurethane is almost translucent. When we add nearly any type of dry sand or aggregate, we get a fast-curing polishable repair that blends beautifully with the surrounding concrete. Since this material is almost translucent, it resists shadowing effects due to over-banding when applied.

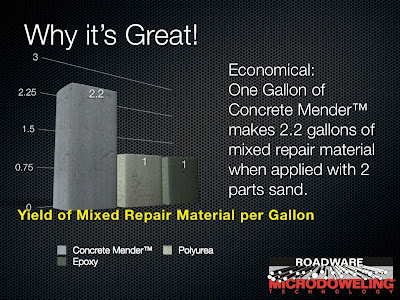

Lower Cost:

By adding two parts silica or quartz sand to a gallon of Concrete Mender™ you will yield about 2.2 gallons of repair material.

A gallon of polyurea or epoxy will yield a gallon of repair material.  That makes polyurea more expensive to use even at half the material cost! This does not even factor in the hidden costs of short repair life, damage to the surrounding concrete caused by pre-mature failure, or the cost of redoing the the repairs when they fail.

Why concrete memder is great

Packaging:

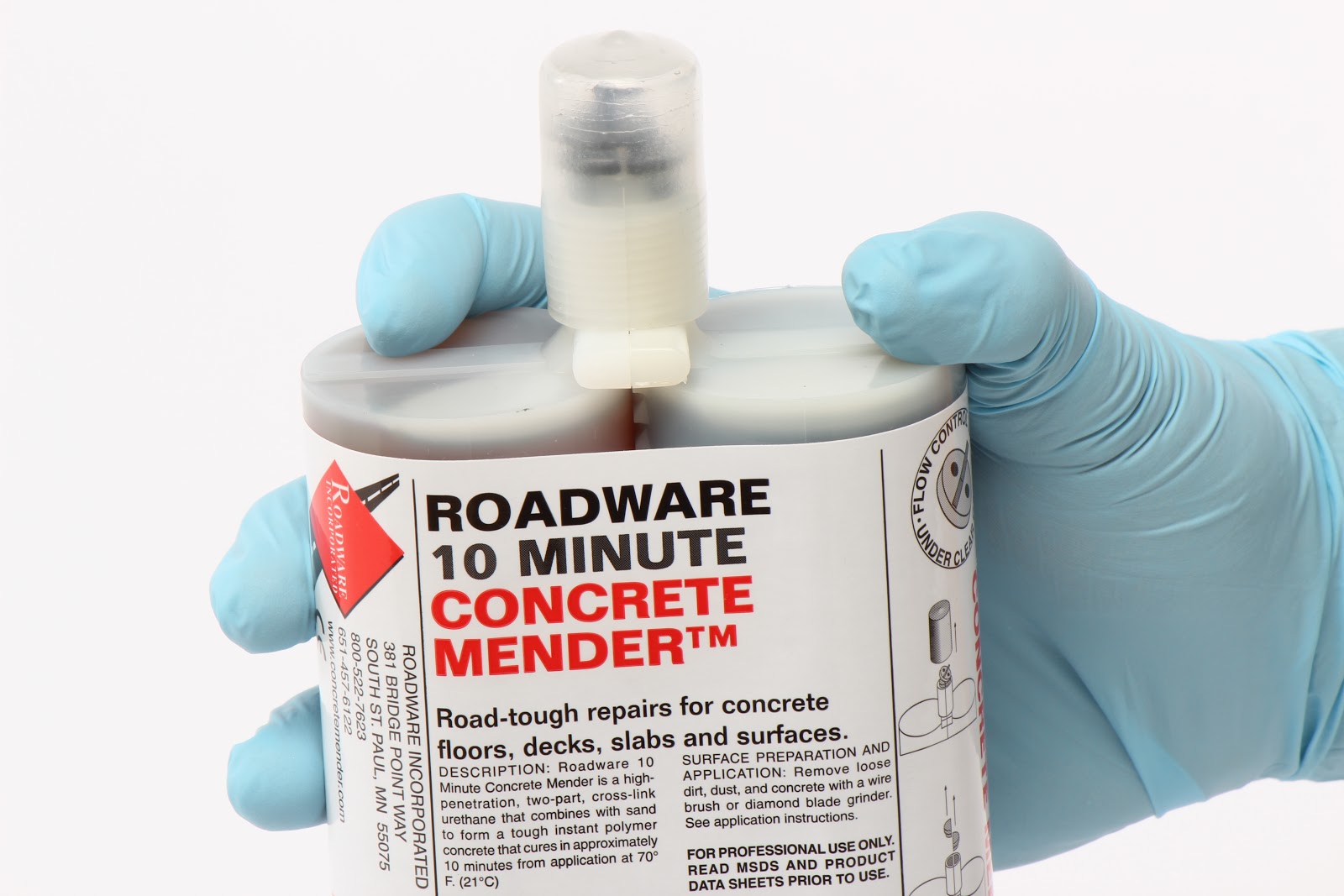

10 Minute Concrete Mender™ hand packed with state-of-the-art packaging materials.  They have to be good. The very low viscosity and surface tension require it.

Bulk application
Bulk Application:
Due to the the extended working time formula, bulk mixing of Concrete Mender™ is easy.  Unlike polyureas that start to gel up instantly, Concrete Mender will remain workable and flowable for several minutes before curing begins.  Much less wasted product setting up in buckets.
Pin-point application 1
Pin-point application 2
Pin-point Application:
With a needle tip mixer, you can apply Concrete Mender™ within-point accuracy delivering product to where it is needed most. Our needles come as small as 1.2mm in diameter.  If you can get a finger nail in the crack, we can get some Concrete Mender in there as well.
Concrete crack

Freezers:

Working in the cold?  We’re from Minnesota. We know first hand what it takes to work in freezing temperatures. 10 Minute Concrete Mender™ can be applied at temperatures below -30 F ( -34C).  That is really cold.  Exposed flesh will freeze in seconds.  That is almost too cold to go ice fishing. Most repair products would freeze solid before curing and quickly fail.  10 Minute Concrete Mender™ generates its own heat. Curing will take several hours, but you will still get the same great performance.

Concrete Mender colors
Colors:
Concrete Mender™ comes in two standard colors.  Concrete Grey and natural off-white. Since a typical repair is made up of two parts sand to one part liquid, the color of the sand will determine the color of the finished repair.  By adding colored quartz sand to off-white Concrete Mender, you can make custom colors as needed.
Specialty applications
Specialty Applications:

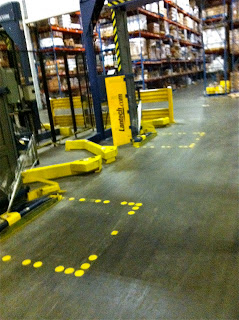

We also custom make Concrete Mender in Safety Yellow, Red, Blue, and Black.  Use Concrete Mender Yellow to create permanent safety lines and marks in difficult areas like cooler and freezer floors.
Safety
Safety:
10 Minute Concrete Mender™ is completely self-reacting and does not out-gas solvents or VOC’s when curing.  This material meets FSIS guidelines for work is federally inspected meat and poultry plants.

History:

For over twenty years, 10 Minute Concrete Mender™ has performed without fail in thousands of applications. Many times outliving the facility itself.

Concrete Mender cold storage repair
Concrete Mender repair in a cold storage warehouse after 15 years of heavy forklift traffic.

Utilizing technology developed to repair bomb damaged runways for NATO, 10 Minute Concrete Mender™ was reformulated and brought to commercial markets in the early 1990’s.  You can find us in nearly every industry that has concrete floors, decks, slabs or surfaces.
